SimplygonSDK::IObject Class Reference

#include <SimplygonSDK.h>

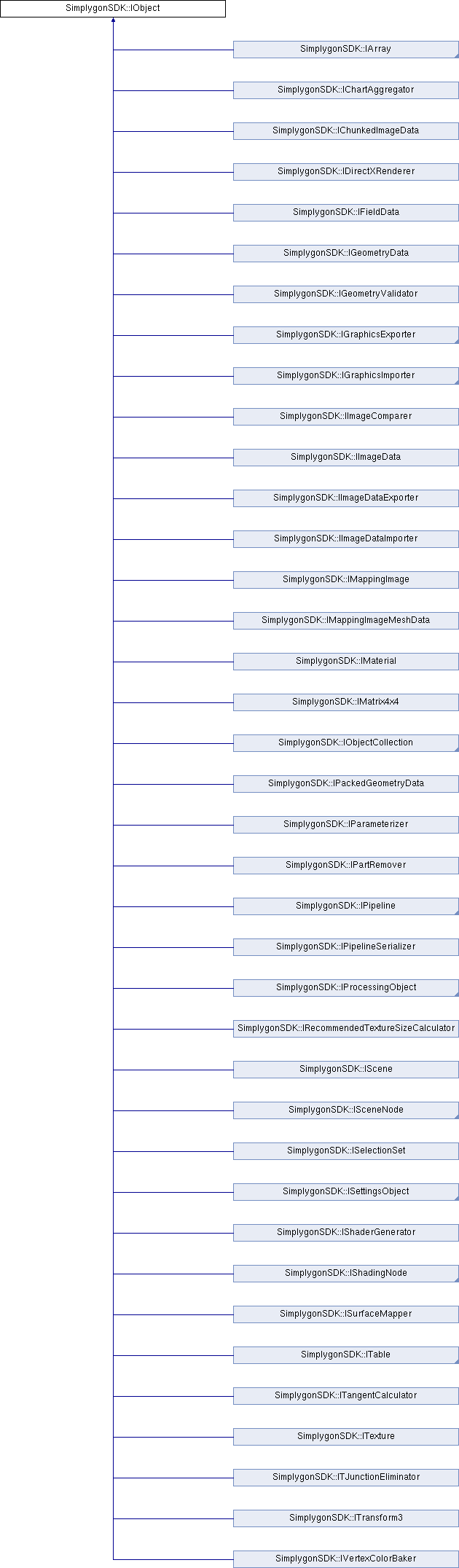

Inheritance diagram for SimplygonSDK::IObject:

Public Member Functions
virtual rid	AddObserver (robserver *Observer, rid EventId)=0
virtual void	AddRef ()=0
virtual const char *	GetClass ()
virtual rstring	GetName ()=0
virtual void *	GetUserComponentArea (rid userid)=0
virtual bool	IsA (const char *type) const
virtual void	PrintInfo ()=0
virtual void	Release ()=0
virtual void	RemoveObserver (rid ObserverId)=0
virtual void	SetName (const char *Name)=0

Static Public Member Functions
static bool	IsClassA (const char *type)
static IObject *	SafeCast (IObject *ptr)

Detailed Description

IObject is the base class for all normal classes defined within the API. The class adds safe casting into any API object, reference counting support (best used with the CountedPointer reference counted pointer class), basic names for all objects, and event handling, using observers (using objects derived from robserver)

Definition at line 1718 of file SimplygonSDK.h.

Member Function Documentation

AddObserver()

virtual rid SimplygonSDK::IObject::AddObserver ( robserver *  Observer, rid  EventId  )

pure virtual

Adds a user-defined observer object to the interface, that will receive any event with the specified EventId from the interface.

Parameters

Observer	is the object that will receive events
EventId	the event id to listen for

Returns

the id of the observer within the API object

AddRef()

virtual void SimplygonSDK::IObject::AddRef ( )

pure virtual

Adds one reference to the object.

GetClass()

virtual const char* SimplygonSDK::IObject::GetClass ( )

virtual

GetClass returns the name of the class of the object.

Returns

the name of the actual class of the object, as a const char string

Reimplemented in SimplygonSDK::IPipelineSettings, SimplygonSDK::IAggregationPipeline, SimplygonSDK::IRemeshingPipeline, SimplygonSDK::IReductionPipeline, SimplygonSDK::IPipelineSerializer, SimplygonSDK::IPipeline, SimplygonSDK::ITJunctionEliminator, SimplygonSDK::IWelder, SimplygonSDK::IPartRemover, SimplygonSDK::IRecommendedTextureSizeCalculator, SimplygonSDK::IImageComparer, SimplygonSDK::IShadowMeshSettings, SimplygonSDK::IShadowMeshProcessor, SimplygonSDK::IFoliageSettings, SimplygonSDK::IFoliageProcessor, SimplygonSDK::IOcclusionMeshSettings, SimplygonSDK::IOcclusionMeshProcessor, SimplygonSDK::ISurfaceMapper, SimplygonSDK::IImpostorSettings, SimplygonSDK::IImpostorProcessor, SimplygonSDK::IAmbientOcclusionCasterSettings, SimplygonSDK::IAmbientOcclusionCaster, SimplygonSDK::IImageDataExporter, SimplygonSDK::IVertexColorBaker, SimplygonSDK::IChartAggregator, SimplygonSDK::IAggregationSettings, SimplygonSDK::IAggregationProcessor, SimplygonSDK::IShaderGenerator, SimplygonSDK::IShadingLessThanNode, SimplygonSDK::IShadingGreaterThanNode, SimplygonSDK::IShadingSinNode, SimplygonSDK::IShadingCosNode, SimplygonSDK::IShadingCross3Node, SimplygonSDK::IShadingDot3Node, SimplygonSDK::IShadingSqrtNode, SimplygonSDK::IShadingNormalize3Node, SimplygonSDK::IShadingLayeredBlendNode, SimplygonSDK::IShadingCustomNode, SimplygonSDK::IShadingInterpolateNode, SimplygonSDK::IShadingVertexColorNode, SimplygonSDK::IShadingNotEqualNode, SimplygonSDK::IShadingEqualNode, SimplygonSDK::IShadingStepNode, SimplygonSDK::IShadingMinNode, SimplygonSDK::IShadingMaxNode, SimplygonSDK::IShadingClampNode, SimplygonSDK::IShadingDivideNode, SimplygonSDK::IShadingPowNode, SimplygonSDK::IShadingMultiplyNode, SimplygonSDK::IShadingSubtractNode, SimplygonSDK::IShadingAddNode, SimplygonSDK::IShadingColorNode, SimplygonSDK::IShadingSwizzlingNode, SimplygonSDK::IShadingTextureNode, SimplygonSDK::IShadingFilterNode, SimplygonSDK::IShadingNode, SimplygonSDK::IMappingImageMeshData, SimplygonSDK::IImageDataImporter, SimplygonSDK::ITextureTable, SimplygonSDK::ITexture, SimplygonSDK::ISelectionSetTable, SimplygonSDK::ISelectionSet, SimplygonSDK::ISceneCamera, SimplygonSDK::IScenePlane, SimplygonSDK::ISceneBoneTable, SimplygonSDK::ISceneBone, SimplygonSDK::ISceneLodGroup, SimplygonSDK::ISceneMesh, SimplygonSDK::ISceneNodeCollection, SimplygonSDK::ISceneNode, SimplygonSDK::IScene, SimplygonSDK::IRemeshingProcessorV2, SimplygonSDK::IRemeshingProcessor, SimplygonSDK::IRemeshingSettingsV2, SimplygonSDK::IRemeshingSettings, SimplygonSDK::IReductionProcessor, SimplygonSDK::IVisibilitySettings, SimplygonSDK::IMappingImageSettings, SimplygonSDK::INormalCalculationSettings, SimplygonSDK::IReductionSettings, SimplygonSDK::IBoneSettings, SimplygonSDK::IRepairSettings, SimplygonSDK::ITangentCalculator, SimplygonSDK::IDisplacementCasterSettings, SimplygonSDK::IDisplacementCaster, SimplygonSDK::INormalRepairer, SimplygonSDK::INormalCasterSettings, SimplygonSDK::INormalCaster, SimplygonSDK::IOpacityCasterSettings, SimplygonSDK::IOpacityCaster, SimplygonSDK::IColorCasterSettings, SimplygonSDK::IColorCaster, SimplygonSDK::IMaterialCasterSettings, SimplygonSDK::IMaterialCaster, SimplygonSDK::ISettingsObject, SimplygonSDK::IGeometryValidator, SimplygonSDK::IBinaryExporter, SimplygonSDK::IBinaryImporter, SimplygonSDK::IWavefrontExporter, SimplygonSDK::IGraphicsExporter, SimplygonSDK::IWavefrontImporter, SimplygonSDK::IGraphicsImporter, SimplygonSDK::IGeometryDataCollection, SimplygonSDK::IObjectCollection, SimplygonSDK::IParameterizer, SimplygonSDK::IProcessingObject, SimplygonSDK::IMappingImage, SimplygonSDK::ITransform3, SimplygonSDK::IMatrix4x4, SimplygonSDK::IMaterialTable, SimplygonSDK::IMaterial, SimplygonSDK::ITable, SimplygonSDK::IImageData, SimplygonSDK::IPackedGeometryData, SimplygonSDK::IGeometryData, SimplygonSDK::IFieldData, SimplygonSDK::IDirectXRenderer, SimplygonSDK::IChunkedImageData, SimplygonSDK::IUnsignedShortArray, SimplygonSDK::IUnsignedLongArray, SimplygonSDK::IUnsignedIntArray, SimplygonSDK::IUnsignedCharArray, SimplygonSDK::IShortArray, SimplygonSDK::IRidArray, SimplygonSDK::IRealArray, SimplygonSDK::ILongArray, SimplygonSDK::IIntArray, SimplygonSDK::IFloatArray, SimplygonSDK::IDoubleArray, SimplygonSDK::ICharArray, SimplygonSDK::IBoolArray, SimplygonSDK::IStringArray, SimplygonSDK::IValueArray, and SimplygonSDK::IArray.

GetName()

virtual rstring SimplygonSDK::IObject::GetName ( )

pure virtual

Gets the name of the object.

Returns

The name of the object

GetUserComponentArea()

virtual void* SimplygonSDK::IObject::GetUserComponentArea ( rid  userid )

pure virtual

IsA()

virtual bool SimplygonSDK::IObject::IsA ( const char *  type ) const

virtual

The IsA function returns true if the object is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the object is, or is a descendant of

Returns

true if the object is of the specified class, false if not

Reimplemented in SimplygonSDK::IPipelineSettings, SimplygonSDK::IAggregationPipeline, SimplygonSDK::IRemeshingPipeline, SimplygonSDK::IReductionPipeline, SimplygonSDK::IPipelineSerializer, SimplygonSDK::IPipeline, SimplygonSDK::ITJunctionEliminator, SimplygonSDK::IWelder, SimplygonSDK::IPartRemover, SimplygonSDK::IRecommendedTextureSizeCalculator, SimplygonSDK::IImageComparer, SimplygonSDK::IShadowMeshSettings, SimplygonSDK::IShadowMeshProcessor, SimplygonSDK::IFoliageSettings, SimplygonSDK::IFoliageProcessor, SimplygonSDK::IOcclusionMeshSettings, SimplygonSDK::IOcclusionMeshProcessor, SimplygonSDK::ISurfaceMapper, SimplygonSDK::IImpostorSettings, SimplygonSDK::IImpostorProcessor, SimplygonSDK::IAmbientOcclusionCasterSettings, SimplygonSDK::IAmbientOcclusionCaster, SimplygonSDK::IImageDataExporter, SimplygonSDK::IVertexColorBaker, SimplygonSDK::IChartAggregator, SimplygonSDK::IAggregationSettings, SimplygonSDK::IAggregationProcessor, SimplygonSDK::IShaderGenerator, SimplygonSDK::IShadingLessThanNode, SimplygonSDK::IShadingGreaterThanNode, SimplygonSDK::IShadingSinNode, SimplygonSDK::IShadingCosNode, SimplygonSDK::IShadingCross3Node, SimplygonSDK::IShadingDot3Node, SimplygonSDK::IShadingSqrtNode, SimplygonSDK::IShadingNormalize3Node, SimplygonSDK::IShadingLayeredBlendNode, SimplygonSDK::IShadingCustomNode, SimplygonSDK::IShadingInterpolateNode, SimplygonSDK::IShadingVertexColorNode, SimplygonSDK::IShadingNotEqualNode, SimplygonSDK::IShadingEqualNode, SimplygonSDK::IShadingStepNode, SimplygonSDK::IShadingMinNode, SimplygonSDK::IShadingMaxNode, SimplygonSDK::IShadingClampNode, SimplygonSDK::IShadingDivideNode, SimplygonSDK::IShadingPowNode, SimplygonSDK::IShadingMultiplyNode, SimplygonSDK::IShadingSubtractNode, SimplygonSDK::IShadingAddNode, SimplygonSDK::IShadingColorNode, SimplygonSDK::IShadingSwizzlingNode, SimplygonSDK::IShadingTextureNode, SimplygonSDK::IShadingFilterNode, SimplygonSDK::IShadingNode, SimplygonSDK::IMappingImageMeshData, SimplygonSDK::IImageDataImporter, SimplygonSDK::ITextureTable, SimplygonSDK::ITexture, SimplygonSDK::ISelectionSetTable, SimplygonSDK::ISelectionSet, SimplygonSDK::ISceneCamera, SimplygonSDK::IScenePlane, SimplygonSDK::ISceneBoneTable, SimplygonSDK::ISceneBone, SimplygonSDK::ISceneLodGroup, SimplygonSDK::ISceneMesh, SimplygonSDK::ISceneNodeCollection, SimplygonSDK::ISceneNode, SimplygonSDK::IScene, SimplygonSDK::IRemeshingProcessorV2, SimplygonSDK::IRemeshingProcessor, SimplygonSDK::IRemeshingSettingsV2, SimplygonSDK::IRemeshingSettings, SimplygonSDK::IReductionProcessor, SimplygonSDK::IVisibilitySettings, SimplygonSDK::IMappingImageSettings, SimplygonSDK::INormalCalculationSettings, SimplygonSDK::IReductionSettings, SimplygonSDK::IBoneSettings, SimplygonSDK::IRepairSettings, SimplygonSDK::ITangentCalculator, SimplygonSDK::IDisplacementCasterSettings, SimplygonSDK::IDisplacementCaster, SimplygonSDK::INormalRepairer, SimplygonSDK::INormalCasterSettings, SimplygonSDK::INormalCaster, SimplygonSDK::IOpacityCasterSettings, SimplygonSDK::IOpacityCaster, SimplygonSDK::IColorCasterSettings, SimplygonSDK::IColorCaster, SimplygonSDK::IMaterialCasterSettings, SimplygonSDK::IMaterialCaster, SimplygonSDK::ISettingsObject, SimplygonSDK::IGeometryValidator, SimplygonSDK::IBinaryExporter, SimplygonSDK::IBinaryImporter, SimplygonSDK::IWavefrontExporter, SimplygonSDK::IGraphicsExporter, SimplygonSDK::IWavefrontImporter, SimplygonSDK::IGraphicsImporter, SimplygonSDK::IGeometryDataCollection, SimplygonSDK::IObjectCollection, SimplygonSDK::IParameterizer, SimplygonSDK::IProcessingObject, SimplygonSDK::IMappingImage, SimplygonSDK::ITransform3, SimplygonSDK::IMatrix4x4, SimplygonSDK::IMaterialTable, SimplygonSDK::IMaterial, SimplygonSDK::ITable, SimplygonSDK::IImageData, SimplygonSDK::IPackedGeometryData, SimplygonSDK::IGeometryData, SimplygonSDK::IFieldData, SimplygonSDK::IDirectXRenderer, SimplygonSDK::IChunkedImageData, SimplygonSDK::IUnsignedShortArray, SimplygonSDK::IUnsignedLongArray, SimplygonSDK::IUnsignedIntArray, SimplygonSDK::IUnsignedCharArray, SimplygonSDK::IShortArray, SimplygonSDK::IRidArray, SimplygonSDK::IRealArray, SimplygonSDK::ILongArray, SimplygonSDK::IIntArray, SimplygonSDK::IFloatArray, SimplygonSDK::IDoubleArray, SimplygonSDK::ICharArray, SimplygonSDK::IBoolArray, SimplygonSDK::IStringArray, SimplygonSDK::IValueArray, and SimplygonSDK::IArray.

IsClassA()

static bool SimplygonSDK::IObject::IsClassA ( const char *  type )

inlinestatic

The IsClassA function returns true if the class is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the class is, or is a descendant of

Returns

true if the class is of the specified class, false if not

Definition at line 1739 of file SimplygonSDK.h.

PrintInfo()

virtual void SimplygonSDK::IObject::PrintInfo ( )

pure virtual

PrintInfo prints the contents/info of the object to the log

Release()

virtual void SimplygonSDK::IObject::Release ( )

pure virtual

Releases one reference to the object. When all references have been removed, the object is removed from memory.

RemoveObserver()

virtual void SimplygonSDK::IObject::RemoveObserver ( rid  ObserverId )

pure virtual

Removes a previously added observer object

Parameters

ObserverId

the id returned by AddObserver when the observer was added

SafeCast()

static IObject* SimplygonSDK::IObject::SafeCast ( IObject *  ptr )

inlinestatic

SafeCast makes sure the pointer is of a class that can be cast into IObject, and if this is the case, returns the pointer cast into an IObject

Parameters

ptr	is the pointer to be cast into a pointer to an object of type IObject

Returns

a pointer to IObject, if the cast can be made

Definition at line 1751 of file SimplygonSDK.h.

SetName()

virtual void SimplygonSDK::IObject::SetName ( const char *  Name )

pure virtual

Sets the name of the object.

Parameters

Name	is the new name of the object

---

The documentation for this class was generated from the following file:

• SimplygonSDK.h
