#include <SimplygonSDK.h>

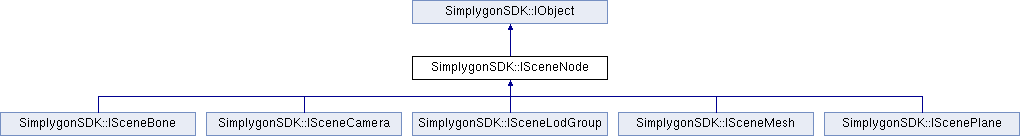

Inheritance diagram for SimplygonSDK::ISceneNode:

Public Member Functions
virtual void	AddChild (ISceneNode *child)=0

virtual bool	CalculateExtents ()=0

virtual CountedPointer< ISceneMesh >	CreateChildMesh (IGeometryData *geom)=0

virtual CountedPointer< IScenePlane >	CreateChildPlane (const real position_realInputDataPtr, const real normal_realInputDataPtr)=0

virtual void	EvaluateDefaultGlobalTransformation (IMatrix4x4 *global_transform)=0

virtual CountedPointer< ISceneNode >	FindNamedChild (const char *name)=0

virtual CountedPointer< ISceneNode >	GetChild (rid index)=0

virtual unsigned int	GetChildCount ()=0

virtual const char *	GetClass ()

virtual void	GetInf (real *realReturnDataPtr)=0

virtual bool	GetIsFrozen ()=0

virtual bool	GetIsModified ()=0

virtual bool	GetIsVisible ()=0

virtual rstring	GetNodeGUID ()=0

virtual rstring	GetOriginalName ()=0

virtual CountedPointer< ISceneNode >	GetParent ()=0

virtual rstring	GetPath ()=0

virtual CountedPointer< IMatrix4x4 >	GetRelativeTransform ()=0

virtual CountedPointer< IScene >	GetScene ()=0

virtual void	GetSup (real *realReturnDataPtr)=0

virtual bool	HasChild (ISceneNode *child)=0

virtual bool	IsA (const char *type) const

virtual CountedPointer< ISceneNode >	NewClone ()=0

virtual CountedPointer< ISceneNode >	NewCopy ()=0

virtual void	RemoveChild (ISceneNode *child)=0

virtual void	RemoveChildren ()=0

virtual void	RemoveFromParent ()=0

virtual void	SetIsFrozen (bool value)=0

virtual void	SetIsModified (bool value)=0

virtual void	SetIsVisible (bool value)=0

virtual void	SetNodeGUID (const char *value)=0

virtual void	SetOriginalName (const char *value)=0

Public Member Functions inherited from SimplygonSDK::IObject
virtual rid	AddObserver (robserver *Observer, rid EventId)=0

virtual void	AddRef ()=0

virtual rstring	GetName ()=0

virtual void *	GetUserComponentArea (rid userid)=0

virtual void	PrintInfo ()=0

virtual void	Release ()=0

virtual void	RemoveObserver (rid ObserverId)=0

virtual void	SetName (const char *Name)=0

Static Public Member Functions
static bool	IsClassA (const char *type)

static ISceneNode *	SafeCast (IObject *ptr)

Static Public Member Functions inherited from SimplygonSDK::IObject
static bool	IsClassA (const char *type)

static IObject *	SafeCast (IObject *ptr)

Detailed Description

ISceneNode is the base class for all scene graph nodes in simplygon. It has relative transformation to its parent, and functions to add children to the node.

Definition at line 14324 of file SimplygonSDK.h.

Member Function Documentation

◆ AddChild()

virtual void SimplygonSDK::ISceneNode::AddChild ( ISceneNode * child )

pure virtual

Adds a child node to this node. If the child is already a child of another node, it is removed from this node

Parameters

child the child object.

◆ CalculateExtents()

virtual bool SimplygonSDK::ISceneNode::CalculateExtents ( )

pure virtual

Calculates the axis-aligned bounding box of the node and all its children. If the node tree contains no geometric data, or all data is hidden, the bounding box is not calcluated, and the method returns false.

Returns: true if the calculation succeeded

◆ CreateChildMesh()

virtual CountedPointer<ISceneMesh> SimplygonSDK::ISceneNode::CreateChildMesh ( IGeometryData * geom )

pure virtual

Creates a SceneMesh node as a child node to this node.

Parameters

geom	is the GeometryData object to associate with this node

◆ CreateChildPlane()

virtual CountedPointer<IScenePlane> SimplygonSDK::ISceneNode::CreateChildPlane	(	const real *	position_realInputDataPtr,
		const real *	normal_realInputDataPtr
	)

pure virtual

Creates a ScenePlane node as a child node to this node.

Parameters

position_realInputDataPtr	is the point on the plane
normal_realInputDataPtr	is the normal to the plane

◆ EvaluateDefaultGlobalTransformation()

virtual void SimplygonSDK::ISceneNode::EvaluateDefaultGlobalTransformation ( IMatrix4x4 * global_transform )

pure virtual

Evaluates the default global transformation of the node, regardless of node animation.

Parameters

global_transform the transformation matrix that receives the global transformation

◆ FindNamedChild()

virtual CountedPointer<ISceneNode> SimplygonSDK::ISceneNode::FindNamedChild ( const char * name )

pure virtual

Finds the first child that has the name

Parameters

name	the name of the child to look for

◆ GetChild()

virtual CountedPointer<ISceneNode> SimplygonSDK::ISceneNode::GetChild ( rid index )

pure virtual

Get a pointer to the i:th child of this node

Parameters

index the local index of the child (0->GetChildCount()-1)

◆ GetChildCount()

virtual unsigned int SimplygonSDK::ISceneNode::GetChildCount ( )

pure virtual

Get the number of direct children of this node

Returns: the number of direct children of this node

◆ GetClass()

virtual const char* SimplygonSDK::ISceneNode::GetClass ( )

virtual

GetClass returns the name of the class of the object.

Returns: the name of the actual class of the object, as a const char string

Reimplemented from SimplygonSDK::IObject.

Reimplemented in SimplygonSDK::ISceneCamera, SimplygonSDK::IScenePlane, SimplygonSDK::ISceneBone, SimplygonSDK::ISceneLodGroup, and SimplygonSDK::ISceneMesh.

◆ GetInf()

virtual void SimplygonSDK::ISceneNode::GetInf ( real * realReturnDataPtr )

pure virtual

Get the inferior (minimum) extent of the node

Parameters

realReturnDataPtr pointer to a user-provided data area to receive the return value. Note! Needs to be at least 3 elements in size

◆ GetIsFrozen()

virtual bool SimplygonSDK::ISceneNode::GetIsFrozen ( )

pure virtual

Get the IsFrozen flag. If set, the node will not be modified by processing modules.

Returns: the value of the isFrozen bool

◆ GetIsModified()

virtual bool SimplygonSDK::ISceneNode::GetIsModified ( )

pure virtual

Get the IsModified flag. If set, the node is new, copied, or modified by processing modules. This can be useful to track modifications in the scene graph.

Returns: the value of the IsModified bool

◆ GetIsVisible()

virtual bool SimplygonSDK::ISceneNode::GetIsVisible ( )

pure virtual

Get the IsVisible flag. If set, the node is visible.

Returns: the value of the isVisible bool

◆ GetNodeGUID()

virtual rstring SimplygonSDK::ISceneNode::GetNodeGUID ( )

pure virtual

Gets the unique id for this node.

Returns: the GUID for this node

◆ GetOriginalName()

virtual rstring SimplygonSDK::ISceneNode::GetOriginalName ( )

pure virtual

Get the OriginalName parameter which can be used to specify the original name of a node, for debugging of merging purposes. This parameter is not copied or cloned, and is not used internally by Simplygon.

Returns: the value of the OriginalName string

◆ GetParent()

virtual CountedPointer<ISceneNode> SimplygonSDK::ISceneNode::GetParent ( )

pure virtual

Get the parent node of this node

Returns: the parent node

◆ GetPath()

virtual rstring SimplygonSDK::ISceneNode::GetPath ( )

pure virtual

Get the path to this node in the scene. Please note that only paths where each node has a name can be used to get to the node using the path.

Returns: the path to this node in the scene

◆ GetRelativeTransform()

virtual CountedPointer<IMatrix4x4> SimplygonSDK::ISceneNode::GetRelativeTransform ( )

pure virtual

Get the relative transformation of this node

Returns: the relative transformation as a 4x4 matrix

◆ GetScene()

virtual CountedPointer<IScene> SimplygonSDK::ISceneNode::GetScene ( )

pure virtual

Get the scene object of the node

Returns: the scene object

◆ GetSup()

virtual void SimplygonSDK::ISceneNode::GetSup ( real * realReturnDataPtr )

pure virtual

Get the superior (maximum) extent of the node

Parameters

realReturnDataPtr pointer to a user-provided data area to receive the return value. Note! Needs to be at least 3 elements in size

◆ HasChild()

virtual bool SimplygonSDK::ISceneNode::HasChild ( ISceneNode * child )

pure virtual

Returns true if the node has the specified child

Parameters

child the child node to look for

Returns: true if child exists in the scene, otherwise false

◆ IsA()

virtual bool SimplygonSDK::ISceneNode::IsA ( const char * type ) const

virtual

The IsA function returns true if the object is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the object is, or is a descendant of

Returns: true if the object is of the specified class, false if not

Reimplemented from SimplygonSDK::IObject.

Reimplemented in SimplygonSDK::ISceneCamera, SimplygonSDK::IScenePlane, SimplygonSDK::ISceneBone, SimplygonSDK::ISceneLodGroup, and SimplygonSDK::ISceneMesh.

◆ IsClassA()

static bool SimplygonSDK::ISceneNode::IsClassA ( const char * type )

inlinestatic

The IsClassA function returns true if ISceneNode is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the class is, or is a descendant of

Returns: true if the class is of the specified class, false if not

Definition at line 14345 of file SimplygonSDK.h.

◆ NewClone()

virtual CountedPointer<ISceneNode> SimplygonSDK::ISceneNode::NewClone ( )

pure virtual

Clones this node tree (this node and all the descendants of this node) and returns the cloned top node. Please note that the copy is not added to any scene, and can be added anywhere. Also note that the clone shares all data pointers with the original nodes, such as geometry data objects.

Returns: a new clone of the ISceneNode

◆ NewCopy()

virtual CountedPointer<ISceneNode> SimplygonSDK::ISceneNode::NewCopy ( )

pure virtual

Deep copies this node tree (this node and all the descendants of this node) and returns the copy top node. Please note that the copy is not added to any scene, and can be added anywhere.

Returns: a new copy of the ISceneNode

◆ RemoveChild()

virtual void SimplygonSDK::ISceneNode::RemoveChild ( ISceneNode * child )

pure virtual

Removes a child from the node.

Parameters

child the child to be removed

◆ RemoveChildren()

virtual void SimplygonSDK::ISceneNode::RemoveChildren ( )

pure virtual

Removes all children of this node

◆ RemoveFromParent()

virtual void SimplygonSDK::ISceneNode::RemoveFromParent ( )

pure virtual

Removes this node from its parent.

◆ SafeCast()

static ISceneNode* SimplygonSDK::ISceneNode::SafeCast ( IObject * ptr )

inlinestatic

SafeCast makes sure the pointer is of a class that can be cast into a ISceneNode pointer, and if this is possible, returns the cast pointer.

Parameters

ptr	is the pointer to be cast into a ISceneNode pointer

Returns: a pointer to the ISceneNode object, if the cast can be made, and a NULL pointer otherwise

Definition at line 14358 of file SimplygonSDK.h.

◆ SetIsFrozen()

virtual void SimplygonSDK::ISceneNode::SetIsFrozen ( bool value )

pure virtual

Set the IsFrozen flag. If set, the node will not be modified by processing modules.

Parameters

value is the bool that isFrozen is to be set to

◆ SetIsModified()

virtual void SimplygonSDK::ISceneNode::SetIsModified ( bool value )

pure virtual

Set the IsModified flag. If set, the node is new, copied, or modified by processing modules. This can be useful to track modifications in the scene graph.

Parameters

value is the bool that IsModified is to be set to

◆ SetIsVisible()

virtual void SimplygonSDK::ISceneNode::SetIsVisible ( bool value )

pure virtual

Get the IsVisible flag. If set, the node is visible.

Parameters

value is the bool that isVisible is to be set to

◆ SetNodeGUID()

virtual void SimplygonSDK::ISceneNode::SetNodeGUID ( const char * value )

pure virtual

Sets the unique id for this node.

Parameters

value is the node id of type string

◆ SetOriginalName()

virtual void SimplygonSDK::ISceneNode::SetOriginalName ( const char * value )

pure virtual

Set the OriginalName parameter which can be used to specify the original name of a node, for debugging of merging purposes. This parameter is not copied or cloned, and is not used internally by Simplygon.

Parameters

value is a string the name is to be set to

The documentation for this class was generated from the following file:

SimplygonSDK.h
