#include <SimplygonSDK.h>

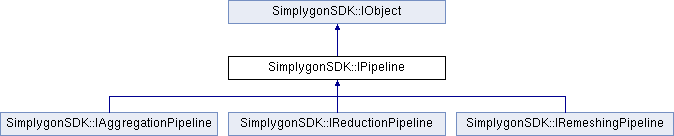

Inheritance diagram for SimplygonSDK::IPipeline:

Public Member Functions
virtual void	AddMaterialCaster (IMaterialCaster *MaterialCaster, unsigned int MaterialIndex)=0

virtual CountedPointer< IMaterialCaster >	AddMaterialCasterByType (const char *CasterType, unsigned int MaterialIndex)=0

virtual bool	GetBoolParameter (const char *name)=0

virtual const char *	GetClass ()

virtual double	GetDoubleParameter (const char *name)=0

virtual int	GetIntParameter (const char *name)=0

virtual CountedPointer< IObjectCollection >	GetMaterialCasters ()=0

virtual unsigned int	GetParameterType (const char *name)=0

virtual CountedPointer< IPipelineSettings >	GetPipelineSettings ()=0

virtual rstring	GetStringParameter (const char *name)=0

virtual unsigned int	GetUIntParameter (const char *name)=0

virtual bool	IsA (const char *type) const

virtual void	RunScene (IScene *scene)=0

virtual void	RunSceneFromFile (const char input_scene, const char output_scene)=0

virtual bool	SetBoolParameter (const char *name, bool value)=0

virtual bool	SetDoubleParameter (const char *name, double value)=0

virtual bool	SetIntParameter (const char *name, int value)=0

virtual bool	SetParameterFromString (const char name, const char value)=0

virtual bool	SetStringParameter (const char name, const char value)=0

virtual bool	SetUIntParameter (const char *name, unsigned int value)=0

Public Member Functions inherited from SimplygonSDK::IObject
virtual rid	AddObserver (robserver *Observer, rid EventId)=0

virtual void	AddRef ()=0

virtual rstring	GetName ()=0

virtual void *	GetUserComponentArea (rid userid)=0

virtual void	PrintInfo ()=0

virtual void	Release ()=0

virtual void	RemoveObserver (rid ObserverId)=0

virtual void	SetName (const char *Name)=0

Static Public Member Functions
static bool	IsClassA (const char *type)

static IPipeline *	SafeCast (IObject *ptr)

Static Public Member Functions inherited from SimplygonSDK::IObject
static bool	IsClassA (const char *type)

static IObject *	SafeCast (IObject *ptr)

Detailed Description

IPipeline is the interface for a processing pipeline, which applies a number of processing opearations on an input scene to generate an output scene. The input and output scenes can be any file format supported by Simplygon.

Definition at line 21476 of file SimplygonSDK.h.

Member Function Documentation

◆ AddMaterialCaster()

virtual void SimplygonSDK::IPipeline::AddMaterialCaster	(	IMaterialCaster *	MaterialCaster,
		unsigned int	MaterialIndex
	)

pure virtual

Add a material caster. Material casting requires the mapping image generation to be enabled (SetGenerateMappingImage in IMappingImageSettings returned by GetMappingImageSettings) If called with a material index set to non-zero, the mapping image for the corresponding output material will be used. See GetOutputMaterialCount/SetOutputMaterialCount in IMappingImageSettings

Parameters

MaterialCaster	The material caster to add
MaterialIndex	The material index the caster will be associated with, 0 for first material

◆ AddMaterialCasterByType()

virtual CountedPointer<IMaterialCaster> SimplygonSDK::IPipeline::AddMaterialCasterByType	(	const char *	CasterType,
		unsigned int	MaterialIndex
	)

pure virtual

Add a material caster by type name. Type name should undecorated base name of caster, for example "Color", "AmbientOcclusion", "Normal" etc. Material casting requires the mapping image generation to be enabled (SetGenerateMappingImage in IMappingImageSettings returned by GetMappingImageSettings). If called with a material index set to non-zero, the mapping image for the corresponding output material will be used. See GetOutputMaterialCount/SetOutputMaterialCount in IMappingImageSettings

Parameters

CasterType	Caster type name, like "Color", "AmbientOcclusion", "Normal" or similar
MaterialIndex	The material index the caster will be associated with, 0 for first material

Returns: The new material caster

◆ GetBoolParameter()

virtual bool SimplygonSDK::IPipeline::GetBoolParameter ( const char * name )

pure virtual

Get a named parameter boolean value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"

Returns: Parameter value, or false if invalid parameter path or mismatching type

◆ GetClass()

virtual const char* SimplygonSDK::IPipeline::GetClass ( )

virtual

GetClass returns the name of the class of the object.

Returns: the name of the actual class of the object, as a const char string

Reimplemented from SimplygonSDK::IObject.

Reimplemented in SimplygonSDK::IAggregationPipeline, SimplygonSDK::IRemeshingPipeline, and SimplygonSDK::IReductionPipeline.

◆ GetDoubleParameter()

virtual double SimplygonSDK::IPipeline::GetDoubleParameter ( const char * name )

pure virtual

Get a named parameter floating point value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"

Returns: Parameter value, or 0 if invalid parameter path or mismatching type

◆ GetIntParameter()

virtual int SimplygonSDK::IPipeline::GetIntParameter ( const char * name )

pure virtual

Get a named parameter integer value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"

Returns: Parameter value, or 0 if invalid parameter path or mismatching type

◆ GetMaterialCasters()

virtual CountedPointer<IObjectCollection> SimplygonSDK::IPipeline::GetMaterialCasters ( )

pure virtual

Get the material casters for the pipeline

Returns: All material casters

◆ GetParameterType()

virtual unsigned int SimplygonSDK::IPipeline::GetParameterType ( const char * name )

pure virtual

Get a named parameter data type including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"

Returns: parameter data type (see SettingValueType enum), or SG_SETTINGVALUETYPE_INVALID if invalid parameter path

◆ GetPipelineSettings()

virtual CountedPointer<IPipelineSettings> SimplygonSDK::IPipeline::GetPipelineSettings ( )

pure virtual

Get the settings for the pipeline

Returns: Settings object for pipeline

◆ GetStringParameter()

virtual rstring SimplygonSDK::IPipeline::GetStringParameter ( const char * name )

pure virtual

Get a named parameter string value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"

Returns: Parameter value, or null pointer if invalid parameter path or mismatching type

◆ GetUIntParameter()

virtual unsigned int SimplygonSDK::IPipeline::GetUIntParameter ( const char * name )

pure virtual

Get a named parameter unsigned integer value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"

Returns: Parameter value, or 0 if invalid parameter path or mismatching type

◆ IsA()

virtual bool SimplygonSDK::IPipeline::IsA ( const char * type ) const

virtual

The IsA function returns true if the object is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the object is, or is a descendant of

Returns: true if the object is of the specified class, false if not

Reimplemented from SimplygonSDK::IObject.

Reimplemented in SimplygonSDK::IAggregationPipeline, SimplygonSDK::IRemeshingPipeline, and SimplygonSDK::IReductionPipeline.

◆ IsClassA()

static bool SimplygonSDK::IPipeline::IsClassA ( const char * type )

inlinestatic

The IsClassA function returns true if IPipeline is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the class is, or is a descendant of

Returns: true if the class is of the specified class, false if not

Definition at line 21497 of file SimplygonSDK.h.

◆ RunScene()

virtual void SimplygonSDK::IPipeline::RunScene ( IScene * scene )

pure virtual

Run the pipeline on the given scene, which will be modifed and contain the result of the pipeline when the function returns. Please note that internal refrences might be modified by the pipeline. The caller should refresh any reference that is cached outside the scene after running the pipeline.

Parameters

scene The scene to run the pipeline on.

◆ RunSceneFromFile()

virtual void SimplygonSDK::IPipeline::RunSceneFromFile	(	const char *	input_scene,
		const char *	output_scene
	)

pure virtual

Run the pipeline on the scene loaded from the given input scene file, and write the resulting scene to the given output scene file

Parameters

input_scene	The file path of the input scene file
output_scene	The file path of the output scene file

◆ SafeCast()

static IPipeline* SimplygonSDK::IPipeline::SafeCast ( IObject * ptr )

inlinestatic

SafeCast makes sure the pointer is of a class that can be cast into a IPipeline pointer, and if this is possible, returns the cast pointer.

Parameters

ptr	is the pointer to be cast into a IPipeline pointer

Returns: a pointer to the IPipeline object, if the cast can be made, and a NULL pointer otherwise

Definition at line 21510 of file SimplygonSDK.h.

◆ SetBoolParameter()

virtual bool SimplygonSDK::IPipeline::SetBoolParameter	(	const char *	name,
		bool	value
	)

pure virtual

Set a named parameter boolean value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"
value	New value for parameter

Returns: true if successful, false if error (invalid parameter path or mismatching parameter type)

◆ SetDoubleParameter()

virtual bool SimplygonSDK::IPipeline::SetDoubleParameter	(	const char *	name,
		double	value
	)

pure virtual

Set a named parameter floating point value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"
value	New value for parameter

Returns: true if successful, false if error (invalid parameter path or mismatching parameter type)

◆ SetIntParameter()

virtual bool SimplygonSDK::IPipeline::SetIntParameter	(	const char *	name,
		int	value
	)

pure virtual

Set a named parameter integer value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"
value	New value for parameter

Returns: true if successful, false if error (invalid parameter path or mismatching parameter type)

◆ SetParameterFromString()

virtual bool SimplygonSDK::IPipeline::SetParameterFromString	(	const char *	name,
		const char *	value
	)

pure virtual

Set a named parameter value including parameter path. The string will be parsed with best effort according to the parameter data type.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"
value	New value for parameter

Returns: true if successful, false if error (invalid parameter path or mismatching parameter type)

◆ SetStringParameter()

virtual bool SimplygonSDK::IPipeline::SetStringParameter	(	const char *	name,
		const char *	value
	)

pure virtual

Set a named parameter string value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"
value	New value for parameter

Returns: true if successful, false if error (invalid parameter path or mismatching parameter type)

◆ SetUIntParameter()

virtual bool SimplygonSDK::IPipeline::SetUIntParameter	(	const char *	name,
		unsigned int	value
	)

pure virtual

Set a named parameter unsigned integer value including parameter path.

Parameters

name	Parameter path separated with forward slash, like "/RemeshingProcessor/Reduction/MergeGeometries"
value	New value for parameter

Returns: true if successful, false if error (invalid parameter path or mismatching parameter type)

The documentation for this class was generated from the following file:

SimplygonSDK.h
