#include <SimplygonSDK.h>

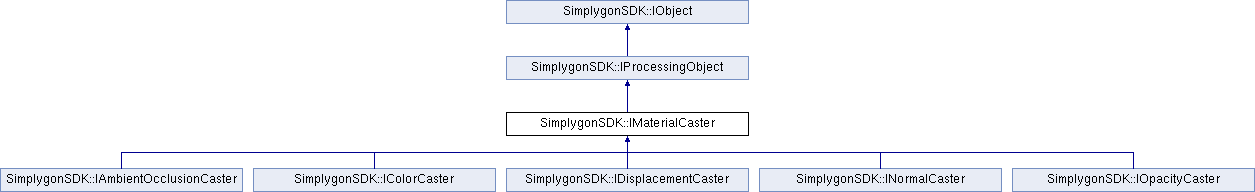

Inheritance diagram for SimplygonSDK::IMaterialCaster:

Public Member Functions
virtual SGDEPRECATED void	CastMaterials ()=0

virtual CountedPointer< IMaterialCasterSettings >	GetCasterSettings ()=0

virtual const char *	GetClass ()

virtual rid	GetDestMaterialId ()=0

virtual unsigned int	GetDilation ()=0

virtual unsigned int	GetDitherType ()=0

virtual unsigned int	GetFillMode ()=0

virtual CountedPointer< IMappingImage >	GetMappingImage ()=0

virtual unsigned int	GetOutputChannelBitDepth ()=0

virtual unsigned int	GetOutputChannels ()=0

virtual rstring	GetOutputFilePath ()=0

virtual CountedPointer< IImageData >	GetOutputImage ()=0

virtual CountedPointer< IMaterialTable >	GetSourceMaterials ()=0

virtual CountedPointer< ITextureTable >	GetSourceTextures ()=0

virtual bool	GetUseMultisampling ()=0

virtual bool	IsA (const char *type) const

virtual void	SetDestMaterialId (rid value)=0

virtual void	SetDilation (unsigned int Dilation)=0

virtual void	SetDitherType (unsigned int DitherType)=0

virtual void	SetFillMode (unsigned int FillMode)=0

virtual void	SetMappingImage (IMappingImage *value)=0

virtual void	SetOutputChannelBitDepth (unsigned int OutputChannelBitDepth)=0

virtual void	SetOutputChannels (unsigned int OutputChannels)=0

virtual void	SetOutputFilePath (const char *value)=0

virtual void	SetOutputImage (IImageData *value)=0

virtual void	SetSourceMaterials (IMaterialTable *value)=0

virtual void	SetSourceTextures (ITextureTable *value)=0

virtual void	SetUseMultisampling (bool UseMultisampling)=0

Public Member Functions inherited from SimplygonSDK::IProcessingObject
virtual void	Clear ()=0

virtual real	GetPercentDone ()=0

virtual void	RunProcessing ()=0

Public Member Functions inherited from SimplygonSDK::IObject
virtual rid	AddObserver (robserver *Observer, rid EventId)=0

virtual void	AddRef ()=0

virtual rstring	GetName ()=0

virtual void *	GetUserComponentArea (rid userid)=0

virtual void	PrintInfo ()=0

virtual void	Release ()=0

virtual void	RemoveObserver (rid ObserverId)=0

virtual void	SetName (const char *Name)=0

Static Public Member Functions
static bool	IsClassA (const char *type)

static IMaterialCaster *	SafeCast (IObject *ptr)

Static Public Member Functions inherited from SimplygonSDK::IProcessingObject
static bool	IsClassA (const char *type)

static IProcessingObject *	SafeCast (IObject *ptr)

Static Public Member Functions inherited from SimplygonSDK::IObject
static bool	IsClassA (const char *type)

static IObject *	SafeCast (IObject *ptr)

Detailed Description

IMaterialCaster is the base interface for material casting interfaces. The interface exports methods for defining input geometries & mapping image, materials, output image paths & formats

Definition at line 9072 of file SimplygonSDK.h.

Member Function Documentation

◆ CastMaterials()

virtual SGDEPRECATED void SimplygonSDK::IMaterialCaster::CastMaterials ( )

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. Use RunProcessing() instead. Runs the material casting from SourceGeometry to Geometry.

◆ GetCasterSettings()

virtual CountedPointer<IMaterialCasterSettings> SimplygonSDK::IMaterialCaster::GetCasterSettings ( )

pure virtual

Get the settings object

◆ GetClass()

virtual const char* SimplygonSDK::IMaterialCaster::GetClass ( )

virtual

GetClass returns the name of the class of the object.

Returns: the name of the actual class of the object, as a const char string

Reimplemented from SimplygonSDK::IProcessingObject.

Reimplemented in SimplygonSDK::IAmbientOcclusionCaster, SimplygonSDK::IDisplacementCaster, SimplygonSDK::INormalCaster, SimplygonSDK::IOpacityCaster, and SimplygonSDK::IColorCaster.

◆ GetDestMaterialId()

virtual rid SimplygonSDK::IMaterialCaster::GetDestMaterialId ( )

pure virtual

Get the DestMaterialId object. If set, only the parts of the destination map that. To disable, set to -1.

Returns: the current value of DestMaterialId

◆ GetDilation()

virtual unsigned int SimplygonSDK::IMaterialCaster::GetDilation ( )

pure virtual

Get the Dilation value. Where applicable, such as colors and normals, the caster will fill empty pixels surrounding filled pixels with values mixed from the filled ones. This setting sets how many pixels to fill outside the original filled pixels.

Returns: the current value of Dilation

◆ GetDitherType()

virtual unsigned int SimplygonSDK::IMaterialCaster::GetDitherType ( )

pure virtual

The type of dithering to use when creating the output object. Default is SG_DITHERPATTERNS_NO_DITHER.

◆ GetFillMode()

virtual unsigned int SimplygonSDK::IMaterialCaster::GetFillMode ( )

pure virtual

Get the fill mode

Returns: the current fill mode

◆ GetMappingImage()

virtual CountedPointer<IMappingImage> SimplygonSDK::IMaterialCaster::GetMappingImage ( )

pure virtual

Get the MappingImage object. The MappingImage object contains the mapping between the Geometry and SourceGeometry objects.

Returns: the current MappingImage

◆ GetOutputChannelBitDepth()

virtual unsigned int SimplygonSDK::IMaterialCaster::GetOutputChannelBitDepth ( )

pure virtual

Get the OutputBitDepth parameter. This can be either 8 or 16. Please note that this is the bit depth per-channel, so a bit depth of 8 and a OutputChannels value of 3 will result in 8*3 = 24-bit RGB values.

Returns: the current value of OutputBitDepth

◆ GetOutputChannels()

virtual unsigned int SimplygonSDK::IMaterialCaster::GetOutputChannels ( )

pure virtual

Get the OutputChannels parameter. This can be set to either:

1 (Luminance)
3 (RGB)
4 (RGBA)

Returns: the current value of OutputChannels

◆ GetOutputFilePath()

virtual rstring SimplygonSDK::IMaterialCaster::GetOutputFilePath ( )

pure virtual

Get the OutputFilePath file path, where the output image will be placed. Note that the extension specified will specify the file format. Please note that only PNG (extension .png) will be able to support all possible bit dephts (such as RGB 16-bit per channel). Either OutputImage or OutputFilePath must be set. If OutputImage is set, then OutputFilePath is ignored.

Returns: the current OutputFilePath

◆ GetOutputImage()

virtual CountedPointer<IImageData> SimplygonSDK::IMaterialCaster::GetOutputImage ( )

pure virtual

Get the OutputImage object that will receive the image. The current contents of the image will be removed, and the image will be written to the Colors field of the ReImageData object. Either OutputImage or OutputFilePath must be set. If OutputImage is set, then OutputFilePath is ignored.

Returns: the current OutputImage

◆ GetSourceMaterials()

virtual CountedPointer<IMaterialTable> SimplygonSDK::IMaterialCaster::GetSourceMaterials ( )

pure virtual

Get the SourceMaterials object. The SourceMaterials object contains all materials of the the source geometry. The source geometry must have a "MaterialIds" field that indices the material table.

Returns: the current SourceMaterials material table

◆ GetSourceTextures()

virtual CountedPointer<ITextureTable> SimplygonSDK::IMaterialCaster::GetSourceTextures ( )

pure virtual

Get the SourceTextures object. The SourceTextures object contains all textures of the the source geometry.

Returns: the current SourceTextures material table

◆ GetUseMultisampling()

virtual bool SimplygonSDK::IMaterialCaster::GetUseMultisampling ( )

pure virtual

Get the multisampling flag

Returns: the current multisampling flag

◆ IsA()

virtual bool SimplygonSDK::IMaterialCaster::IsA ( const char * type ) const

virtual

The IsA function returns true if the object is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the object is, or is a descendant of

Returns: true if the object is of the specified class, false if not

Reimplemented from SimplygonSDK::IProcessingObject.

Reimplemented in SimplygonSDK::IAmbientOcclusionCaster, SimplygonSDK::IDisplacementCaster, SimplygonSDK::INormalCaster, SimplygonSDK::IOpacityCaster, and SimplygonSDK::IColorCaster.

◆ IsClassA()

static bool SimplygonSDK::IMaterialCaster::IsClassA ( const char * type )

inlinestatic

The IsClassA function returns true if IMaterialCaster is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the class is, or is a descendant of

Returns: true if the class is of the specified class, false if not

Definition at line 9093 of file SimplygonSDK.h.

◆ SafeCast()

static IMaterialCaster* SimplygonSDK::IMaterialCaster::SafeCast ( IObject * ptr )

inlinestatic

SafeCast makes sure the pointer is of a class that can be cast into a IMaterialCaster pointer, and if this is possible, returns the cast pointer.

Parameters

ptr	is the pointer to be cast into a IMaterialCaster pointer

Returns: a pointer to the IMaterialCaster object, if the cast can be made, and a NULL pointer otherwise

Definition at line 9106 of file SimplygonSDK.h.

◆ SetDestMaterialId()

virtual void SimplygonSDK::IMaterialCaster::SetDestMaterialId ( rid value )

pure virtual

Set the DestMaterialId object. If set, only the parts of the destination map that. To disable, set to -1.

Parameters

value is the value to which DestMaterialId will be set

◆ SetDilation()

virtual void SimplygonSDK::IMaterialCaster::SetDilation ( unsigned int Dilation )

pure virtual

Set the Dilation value. Where applicable, such as colors and normals, the caster will fill empty pixels surrounding filled pixels with values mixed from the filled ones. This setting sets how many pixels to fill outside the original filled pixels.

Parameters

Dilation is the new value of Dilation

◆ SetDitherType()

virtual void SimplygonSDK::IMaterialCaster::SetDitherType ( unsigned int DitherType )

pure virtual

The type of dithering to use when creating the output object. Use the DitherPattern enum to choose. Default is SG_DITHERPATTERNS_NO_DITHER.

0 (SG_DITHERPATTERNS_NO_DITHER)
1 (SG_DITHERPATTERNS_FLOYDSTEINBERG)
2 (SG_DITHERPATTERNS_JARVISJUDICENINKE)
3 (SG_DITHERPATTERNS_SIERRA)

Parameters

DitherType is the value of the DitherType to use

◆ SetFillMode()

virtual void SimplygonSDK::IMaterialCaster::SetFillMode ( unsigned int FillMode )

pure virtual

Set the fill mode

0:SG_ATLASFILLMODE_INTERPOLATE
1:SG_ATLASFILLMODE_NEARESTNEIGHBOR
2:SG_ATLASFILLMODE_NONE

Parameters

FillMode is the value of the FillMode to use

◆ SetMappingImage()

virtual void SimplygonSDK::IMaterialCaster::SetMappingImage ( IMappingImage * value )

pure virtual

Set the MappingImage object. The MappingImage object contains the mapping between the Geometry and SourceGeometry objects.

Parameters

value is the mapping image to which MappingImage will be set

◆ SetOutputChannelBitDepth()

virtual void SimplygonSDK::IMaterialCaster::SetOutputChannelBitDepth ( unsigned int OutputChannelBitDepth )

pure virtual

Set the OutputBitDepth parameter. This can be either 8 or 16. Please note that this is the bit depth per-channel, so a bit depth of 8 and a OutputChannels value of 3 will result in 8*3 = 24-bit RGB values.

Parameters

OutputChannelBitDepth is the bit depth of the OutputChannel (8 or 16)

◆ SetOutputChannels()

virtual void SimplygonSDK::IMaterialCaster::SetOutputChannels ( unsigned int OutputChannels )

pure virtual

Set the OutputChannels parameter. This can be set to either:

1 (Luminance)
3 (RGB)
4 (RGBA)

Parameters

OutputChannels is the number of OutputChannels the texture will contain.

◆ SetOutputFilePath()

virtual void SimplygonSDK::IMaterialCaster::SetOutputFilePath ( const char * value )

pure virtual

Set the OutputFilePath file path, where the output image will be placed. Note that the extension specified will specify the file format. Please note that only PNG (extension .png) will be able to support all possible bit dephts (such as RGB 16-bit per channel). Either OutputImage or OutputFilePath must be set. If OutputImage is set, then OutputFilePath is ignored.

Parameters

value is the string to which OutputFilePath will be set

◆ SetOutputImage()

virtual void SimplygonSDK::IMaterialCaster::SetOutputImage ( IImageData * value )

pure virtual

Set the OutputImage object that will receive the image. The current contents of the image will be removed, and the image will be written to the Colors field of the ReImageData object. Either OutputImage or OutputFilePath must be set. If OutputImage is set, then OutputFilePath is ignored.

Parameters

value is the image data to which OutputImage will be set

◆ SetSourceMaterials()

virtual void SimplygonSDK::IMaterialCaster::SetSourceMaterials ( IMaterialTable * value )

pure virtual

Set the SourceMaterials object. The SourceMaterials object contains all materials of the the source geometry. The source geometry must have a "MaterialIds" field that indices the material table.

Parameters

value is the material table to which SourceMaterials will be set

◆ SetSourceTextures()

virtual void SimplygonSDK::IMaterialCaster::SetSourceTextures ( ITextureTable * value )

pure virtual

Set the SourceTextures object. The SourceTextures object contains all textures of the the source geometry.

Parameters

value is the texture table to which SourceTextures will be set

◆ SetUseMultisampling()

virtual void SimplygonSDK::IMaterialCaster::SetUseMultisampling ( bool UseMultisampling )

pure virtual

Set the UseMultisampling

Parameters

UseMultisampling the desired value of the flag

The documentation for this class was generated from the following file:

SimplygonSDK.h
