#include <SimplygonSDK.h>

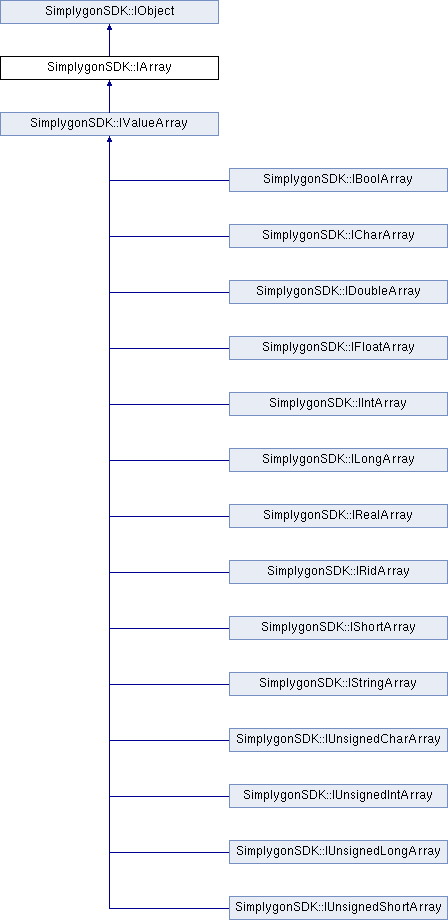

Inheritance diagram for SimplygonSDK::IArray:

Public Member Functions
virtual void	AppendArray (IArray *source)=0

virtual SGDEPRECATED void	AppendTuples (IArray *source)=0

virtual void	Clear ()=0

virtual int	CompareTuples (IArray *otherArray, rid tuple_id, rid other_tuple_id)=0

virtual void	CopyRange (IArray *source_array, rid start_dest_id, rid start_src_id, unsigned int count)=0

virtual void	CopyTuple (IArray *sourceArray, rid dest_id, rid src_id)=0

virtual void	DeepCopy (IArray *source)=0

virtual void	ExtractTuples (IArray *dest, rid start, unsigned int count)=0

virtual rstring	GetAlternativeName ()=0

virtual rid	GetBaseType ()=0

virtual const char *	GetClass ()

virtual unsigned int	GetItemCount ()=0

virtual rid	GetMaxItemId ()=0

virtual rid	GetMaxTupleId ()=0

virtual unsigned int	GetTupleCount ()=0

virtual unsigned int	GetTupleSize ()=0

virtual void	IndexedCopy (IArray source, IRidArray idtable, rid startId)=0

virtual bool	IsA (const char *type) const

virtual bool	IsEmpty ()=0

virtual CountedPointer< IArray >	NewCopy (bool copy_data)=0

virtual CountedPointer< IArray >	NewPackedCopy (IRidArray *index_array)=0

virtual void	SetAlternativeName (const char *value)=0

virtual void	SetItemCount (unsigned int count)=0

virtual void	SetTupleCount (unsigned int tuplecount)=0

virtual void	SetTupleSize (unsigned int newsize)=0

Public Member Functions inherited from SimplygonSDK::IObject
virtual rid	AddObserver (robserver *Observer, rid EventId)=0

virtual void	AddRef ()=0

virtual rstring	GetName ()=0

virtual void *	GetUserComponentArea (rid userid)=0

virtual void	PrintInfo ()=0

virtual void	Release ()=0

virtual void	RemoveObserver (rid ObserverId)=0

virtual void	SetName (const char *Name)=0

Static Public Member Functions
static bool	IsClassA (const char *type)

static IArray *	SafeCast (IObject *ptr)

Static Public Member Functions inherited from SimplygonSDK::IObject
static bool	IsClassA (const char *type)

static IObject *	SafeCast (IObject *ptr)

Detailed Description

IArray is the base class for the array objects. The object contains a dynamically allocated list of tuples of the same length, which can be specified before the list is filled with values.

Definition at line 1809 of file SimplygonSDK.h.

Member Function Documentation

◆ AppendArray()

virtual void SimplygonSDK::IArray::AppendArray ( IArray * source )

pure virtual

Appends an array to this array. The array must be a descendant of ReValueArray. For best performance, append arrays of the same basic type.

Parameters

source the array to append to this array Value cannot be equal to null.

◆ AppendTuples()

virtual SGDEPRECATED void SimplygonSDK::IArray::AppendTuples ( IArray * source )

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. Use AppendArray() instead. Use AppendArray instead of this method.

Parameters

source the array to append to this array. Value cannot be equal to null.

◆ Clear()

virtual void SimplygonSDK::IArray::Clear ( )

pure virtual

Clears the array and sets the tuple count to 0. Tuple size and name remains the same though.

◆ CompareTuples()

virtual int SimplygonSDK::IArray::CompareTuples	(	IArray *	otherArray,
		rid	tuple_id,
		rid	other_tuple_id
	)

pure virtual

CompareTuples compares a tuple in this array with a tuple in another array

Parameters

otherArray	the other array to compare with Value cannot be equal to null.
tuple_id	the tuple from this array to use for comparison Value cannot be less than 0. Value cannot be greater than the value returned by GetMaxTupleId().
other_tuple_id	the tuple from the other array to use for comparison Value cannot be less than 0.

Returns: 0 if the tuples are identical, 1 if an element in this array tuple in ascending order is larger and -1 if smaller

◆ CopyRange()

virtual void SimplygonSDK::IArray::CopyRange	(	IArray *	source_array,
		rid	start_dest_id,
		rid	start_src_id,
		unsigned int	count
	)

pure virtual

CopyRange copies a range of tuples from a source array into this array. The arrays must have the same tuple size and base type. This array must be resized to hold the tuples before copying. The basetypes are listed in SimplygonSDK::BaseTypes.

Parameters

source_array	the source array to copy from
start_dest_id	the first destination tuple id
start_src_id	the first source tuple id
count	the number of tuples to copy

◆ CopyTuple()

virtual void SimplygonSDK::IArray::CopyTuple	(	IArray *	sourceArray,
		rid	dest_id,
		rid	src_id
	)

pure virtual

CopyTuple copies one tuple in a source array to a tuple in this array. Both the dest_id and the source_id must exist in the arrays. This array can be used as the source array to copy within the array.

Parameters

sourceArray	the source array to copy from Value cannot be equal to null.
dest_id	the tuple index in this array to copy into Value cannot be less than 0. Value cannot be greater than the value returned by GetMaxTupleId().
src_id	the tuple index in the source array to copy from Value cannot be less than 0.

◆ DeepCopy()

virtual void SimplygonSDK::IArray::DeepCopy ( IArray * source )

pure virtual

Copies data from another array. The arrays must have the same underlying data types.

Parameters

source the source array to copy from Value cannot be equal to null.

◆ ExtractTuples()

virtual void SimplygonSDK::IArray::ExtractTuples	(	IArray *	dest,
		rid	start,
		unsigned int	count
	)

pure virtual

Extracts tuples from the array. Note that the destination array must have the same classtype and have the same tuple size as the source array. (If both arrays are decendants of ReValueArray, they can be of different types, but the conversion is slow).

Parameters

dest	the array that will store the extracted tuples Value cannot be equal to null.
start	this array tuple index where the extraction starts Value cannot be less than 0. Value cannot be greater than the value returned by GetMaxTupleId().
count	the number of tuples to extract Value cannot be greater than INT_MAX.

◆ GetAlternativeName()

virtual rstring SimplygonSDK::IArray::GetAlternativeName ( )

pure virtual

Get the AlternativeName, which can be used by users to set an alternative name to the array, when used as field data or in a collection.

Returns: the alternative name

◆ GetBaseType()

virtual rid SimplygonSDK::IArray::GetBaseType ( )

pure virtual

GetBaseType() returns the id of the basic type that the array is based on The ids are listed in the BaseTypes enumeration.

Returns: the id of the array type

◆ GetClass()

virtual const char* SimplygonSDK::IArray::GetClass ( )

virtual

GetClass returns the name of the class of the object.

Returns: the name of the actual class of the object, as a const char string

Reimplemented from SimplygonSDK::IObject.

Reimplemented in SimplygonSDK::IUnsignedShortArray, SimplygonSDK::IUnsignedLongArray, SimplygonSDK::IUnsignedIntArray, SimplygonSDK::IUnsignedCharArray, SimplygonSDK::IShortArray, SimplygonSDK::IRidArray, SimplygonSDK::IRealArray, SimplygonSDK::ILongArray, SimplygonSDK::IIntArray, SimplygonSDK::IFloatArray, SimplygonSDK::IDoubleArray, SimplygonSDK::ICharArray, SimplygonSDK::IBoolArray, SimplygonSDK::IStringArray, and SimplygonSDK::IValueArray.

◆ GetItemCount()

virtual unsigned int SimplygonSDK::IArray::GetItemCount ( )

pure virtual

Returns the number of items in the array Warning! Do not confuse this count with the count of tuples, they are only the same if TupleSize is equal to one, i.e. when the tuples are exactly one component each.

Returns: the number of items in the array.

◆ GetMaxItemId()

virtual rid SimplygonSDK::IArray::GetMaxItemId ( )

pure virtual

Returns the id of the last item that is in the array. The id returned is equal to (ItemCount - 1). Warning! Do not confuse this id with the id of a tuple, they are only the same if TupleSize is equal to one, i.e. when the tuples are exactly one component each.

Returns: the max item id.

◆ GetMaxTupleId()

virtual rid SimplygonSDK::IArray::GetMaxTupleId ( )

pure virtual

Returns the id of the tuple last in the list. If the array is empty, the value is unspecified. Note: GetMaxTupleId() always returns (GetTupleCount()-1) as a signed id

Returns: the id of the tuple last in the list

◆ GetTupleCount()

virtual unsigned int SimplygonSDK::IArray::GetTupleCount ( )

pure virtual

Returns the number of tuples in the list.

Returns: the tuple count

◆ GetTupleSize()

virtual unsigned int SimplygonSDK::IArray::GetTupleSize ( )

pure virtual

Used to get the tuple size.

Returns: the tuple size

◆ IndexedCopy()

virtual void SimplygonSDK::IArray::IndexedCopy	(	IArray *	source,
		IRidArray *	idtable,
		rid	startId
	)

pure virtual

Copies tuples from a source array through an id table. The id table dictates the order in which the tuples are to be copied to this array. E.g. If the first item in the id table has the value 14, then the tuple with id 14 in the source array will be copied to the first tuple in this array. Note: All ids in the id table must be valid ids of tuples in the source array. The id table is assumed to have a tuple size of 1. The source array and this array must have the same underlying data type, and have the same tuple size. The array must be large enough to hold the copied data.

Parameters

source	is the array from which to copy tuples Value cannot be equal to null.
idtable	is the array with the tuple indices to copy Value cannot be equal to null.
startId	is the first tuple that will receive the copied values

◆ IsA()

virtual bool SimplygonSDK::IArray::IsA ( const char * type ) const

virtual

The IsA function returns true if the object is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the object is, or is a descendant of

Returns: true if the object is of the specified class, false if not

Reimplemented from SimplygonSDK::IObject.

Reimplemented in SimplygonSDK::IUnsignedShortArray, SimplygonSDK::IUnsignedLongArray, SimplygonSDK::IUnsignedIntArray, SimplygonSDK::IUnsignedCharArray, SimplygonSDK::IShortArray, SimplygonSDK::IRidArray, SimplygonSDK::IRealArray, SimplygonSDK::ILongArray, SimplygonSDK::IIntArray, SimplygonSDK::IFloatArray, SimplygonSDK::IDoubleArray, SimplygonSDK::ICharArray, SimplygonSDK::IBoolArray, SimplygonSDK::IStringArray, and SimplygonSDK::IValueArray.

◆ IsClassA()

static bool SimplygonSDK::IArray::IsClassA ( const char * type )

inlinestatic

The IsClassA function returns true if IArray is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the class is, or is a descendant of

Returns: true if the class is of the specified class, false if not

Definition at line 1830 of file SimplygonSDK.h.

◆ IsEmpty()

virtual bool SimplygonSDK::IArray::IsEmpty ( )

pure virtual

Returns true if the list is empty.

Returns: true if empty

◆ NewCopy()

virtual CountedPointer<IArray> SimplygonSDK::IArray::NewCopy ( bool copy_data )

pure virtual

Creates a new array with the same underlying data type, size and tuple settings as this array. To also copy the actual data, set copy_data to true.

Parameters

copy_data If set, duplicate all the data. If cleared, return an empty array of the same type.

Returns: the new copy of the array

◆ NewPackedCopy()

virtual CountedPointer<IArray> SimplygonSDK::IArray::NewPackedCopy ( IRidArray * index_array )

pure virtual

Like NewCopy, NewPackedCopy creates an array with the same underlying data and tuple settings as the source array. However, NewPackedCopy only copies unique tuples, and if the index_array parameter is set, this index array will contain the same number of tuples as the source array, and with the ids of a specific tuples within the new copy of the array.

Parameters

index_array the optional array that will receive the indices of the remapped tuples.

Returns: a new array with the same properties as this array but only with its unique values

◆ SafeCast()

static IArray* SimplygonSDK::IArray::SafeCast ( IObject * ptr )

inlinestatic

SafeCast makes sure the pointer is of a class that can be cast into a IArray pointer, and if this is possible, returns the cast pointer.

Parameters

ptr	is the pointer to be cast into a IArray pointer

Returns: a pointer to the IArray object, if the cast can be made, and a NULL pointer otherwise

Definition at line 1843 of file SimplygonSDK.h.

◆ SetAlternativeName()

virtual void SimplygonSDK::IArray::SetAlternativeName ( const char * value )

pure virtual

Set the AlternativeName, which can be used by users to set an alternative name to the array, when used as field data or in a collection.

Parameters

value the new alternative name

◆ SetItemCount()

virtual void SimplygonSDK::IArray::SetItemCount ( unsigned int count )

pure virtual

Resizes the list of items to the exact count specified. Warning! Do not confuse this count with the count of tuples, they are only the same if TupleSize is equal to 1, i.e. when the tuples are exactly one component each. Also note that the item count should be a multiple of TupleSize. Note that the total number of items cannot exceed INT_MAX.

Parameters

count the new number of items. Value cannot be greater than INT_MAX.

◆ SetTupleCount()

virtual void SimplygonSDK::IArray::SetTupleCount ( unsigned int tuplecount )

pure virtual

Resizes the list to the specified tuple count. If the list is enlarged, the new tuples will contain unspecified data. Note that the item count equals TupleCount multiplied by TupleSize and that the total number of items cannot exceed INT_MAX.

Parameters

tuplecount the new tuple count Value cannot be greater than INT_MAX.

◆ SetTupleSize()

virtual void SimplygonSDK::IArray::SetTupleSize ( unsigned int newsize )

pure virtual

Used to set the tuple size. Warning! Only use SetTupleSize before filling the list with values, as any added data in the array will be trashed.

Parameters

newsize the new tuple size Value cannot be less than 1. Value cannot be greater than 1024.

The documentation for this class was generated from the following file:

SimplygonSDK.h
