#include <SimplygonSDK.h>

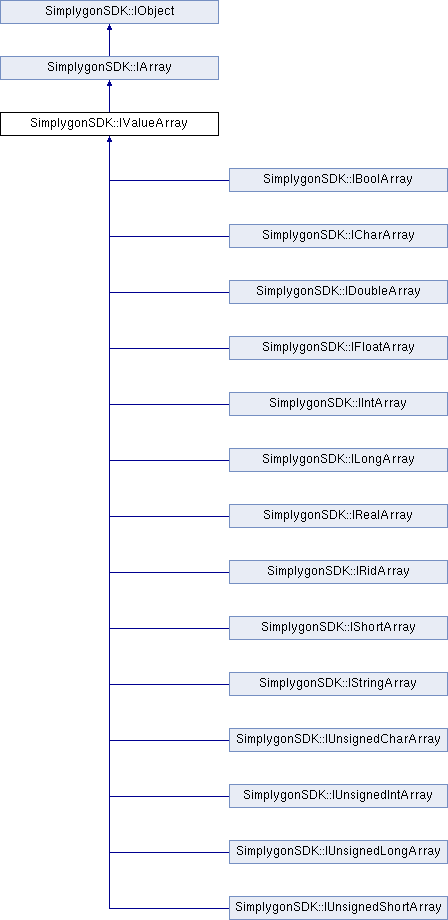

Inheritance diagram for SimplygonSDK::IValueArray:

Public Member Functions
virtual SGDEPRECATED void	CopyCombine3Tuples (IValueArray *sourceArray, rid dest_id, rid src_id_1, rid src_id_2, rid src_id_3, real alpha_1, real alpha_2)=0

virtual SGDEPRECATED void	CopyCombineTuples (IValueArray *sourceArray, rid dest_id, rid src_id_1, rid src_id_2, real alpha)=0

virtual const char *	GetClass ()

virtual SGDEPRECATED bool	GetInterpolateTuples ()=0

virtual real	GetRealItem (rid id)=0

virtual SGDEPRECATED void	IndexedCombine (IValueArray source, IRidArray idtable, IRealArray *blendtable, rid startId)=0

virtual SGDEPRECATED void	IndexedCombine3 (IValueArray source, IRidArray idtable, IRealArray *blendtable, rid startId)=0

virtual bool	IsA (const char *type) const

virtual SGDEPRECATED void	SetInterpolateTuples (bool value)=0

virtual void	SetRealItem (rid id, real value)=0

Public Member Functions inherited from SimplygonSDK::IArray
virtual void	AppendArray (IArray *source)=0

virtual SGDEPRECATED void	AppendTuples (IArray *source)=0

virtual void	Clear ()=0

virtual int	CompareTuples (IArray *otherArray, rid tuple_id, rid other_tuple_id)=0

virtual void	CopyRange (IArray *source_array, rid start_dest_id, rid start_src_id, unsigned int count)=0

virtual void	CopyTuple (IArray *sourceArray, rid dest_id, rid src_id)=0

virtual void	DeepCopy (IArray *source)=0

virtual void	ExtractTuples (IArray *dest, rid start, unsigned int count)=0

virtual rstring	GetAlternativeName ()=0

virtual rid	GetBaseType ()=0

virtual unsigned int	GetItemCount ()=0

virtual rid	GetMaxItemId ()=0

virtual rid	GetMaxTupleId ()=0

virtual unsigned int	GetTupleCount ()=0

virtual unsigned int	GetTupleSize ()=0

virtual void	IndexedCopy (IArray source, IRidArray idtable, rid startId)=0

virtual bool	IsEmpty ()=0

virtual CountedPointer< IArray >	NewCopy (bool copy_data)=0

virtual CountedPointer< IArray >	NewPackedCopy (IRidArray *index_array)=0

virtual void	SetAlternativeName (const char *value)=0

virtual void	SetItemCount (unsigned int count)=0

virtual void	SetTupleCount (unsigned int tuplecount)=0

virtual void	SetTupleSize (unsigned int newsize)=0

Public Member Functions inherited from SimplygonSDK::IObject
virtual rid	AddObserver (robserver *Observer, rid EventId)=0

virtual void	AddRef ()=0

virtual rstring	GetName ()=0

virtual void *	GetUserComponentArea (rid userid)=0

virtual void	PrintInfo ()=0

virtual void	Release ()=0

virtual void	RemoveObserver (rid ObserverId)=0

virtual void	SetName (const char *Name)=0

Static Public Member Functions
static bool	IsClassA (const char *type)

static IValueArray *	SafeCast (IObject *ptr)

Static Public Member Functions inherited from SimplygonSDK::IArray
static bool	IsClassA (const char *type)

static IArray *	SafeCast (IObject *ptr)

Static Public Member Functions inherited from SimplygonSDK::IObject
static bool	IsClassA (const char *type)

static IObject *	SafeCast (IObject *ptr)

Detailed Description

ReValueArray adds methods to arrays to generically add, set and get tuples, through real values.

Definition at line 2083 of file SimplygonSDK.h.

Member Function Documentation

◆ CopyCombine3Tuples()

virtual SGDEPRECATED void SimplygonSDK::IValueArray::CopyCombine3Tuples	(	IValueArray *	sourceArray,
		rid	dest_id,
		rid	src_id_1,
		rid	src_id_2,
		rid	src_id_3,
		real	alpha_1,
		real	alpha_2
	)

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. CopyCombine3Tuples() combines the data from three tuples into a destination tuple. The call works like CopyCombineTuples(), but there is three source tuples, and two alpha values. the destination will be weighted by the values:
alpha_3 = 1-(alpha_1 + alpha_2)
dest = src_1*alpha_1 + src_2*alpha_2 + src_3*alpha_3
The source array must be of the same type as this array, and have the same number of items in each tuple. This array can be used as the source array to copy within the array.

Parameters

sourceArray	the array to copy from Value cannot be equal to null.
dest_id	the tuple index to copy to
src_id_1	the first source array tuple to copy from
src_id_2	the second source array tuple to copy from
src_id_3	the third source array tuple to copy from
alpha_1	the first interpolation value
alpha_2	the second interpolation value

◆ CopyCombineTuples()

virtual SGDEPRECATED void SimplygonSDK::IValueArray::CopyCombineTuples	(	IValueArray *	sourceArray,
		rid	dest_id,
		rid	src_id_1,
		rid	src_id_2,
		real	alpha
	)

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. CopyCombineTuples() combines the data from two tuples from a source array into a destination tuple in this array. If InterpolateTuples is set to true, dest_id will receive a linear interpolation of the values, using the alpha value. If InterpolateTuples is set to false, then if alpha is less than 0.5 the contents of src_id_1 will end up in dest, else the contents of src_id_2 will be copied.
dest = src_1*(1-alpha) + src_2*alpha
The source array must be of the same type as this array, and have the same number of items in each tuple. This array can be used as the source array to copy within the array.

Parameters

sourceArray	the array to copy from Value cannot be equal to null.
dest_id	the tuple index to copy to
src_id_1	the first source array tuple to copy from
src_id_2	the second source array tuple to copy from
alpha	the interpolation value

◆ GetClass()

virtual const char* SimplygonSDK::IValueArray::GetClass ( )

virtual

GetClass returns the name of the class of the object.

Returns: the name of the actual class of the object, as a const char string

Reimplemented from SimplygonSDK::IArray.

Reimplemented in SimplygonSDK::IUnsignedShortArray, SimplygonSDK::IUnsignedLongArray, SimplygonSDK::IUnsignedIntArray, SimplygonSDK::IUnsignedCharArray, SimplygonSDK::IShortArray, SimplygonSDK::IRidArray, SimplygonSDK::IRealArray, SimplygonSDK::ILongArray, SimplygonSDK::IIntArray, SimplygonSDK::IFloatArray, SimplygonSDK::IDoubleArray, SimplygonSDK::ICharArray, SimplygonSDK::IBoolArray, and SimplygonSDK::IStringArray.

◆ GetInterpolateTuples()

virtual SGDEPRECATED bool SimplygonSDK::IValueArray::GetInterpolateTuples ( )

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. Set the interpolation flag. If set, the tuple values will be interpolated by calls to CopyCombineTuples, CopyCombine3Tuples, IndexedCombine and IndexedCombine3. If not set, then the methods will copy data from the tuple with the highest alpha blend value.

Returns: the interpolation flag

◆ GetRealItem()

virtual real SimplygonSDK::IValueArray::GetRealItem ( rid id )

pure virtual

GetRealItem() retrieves the item at position id. The id is the id of the item, not the tuple the item belongs to. GetRealItem() converts the value from the actual underlying data type to a real.

Parameters

id	the item to get. Value cannot be less than 0. Value cannot be greater than the value returned by GetMaxItemId().

Returns: the converted real value of the item.

◆ IndexedCombine()

virtual SGDEPRECATED void SimplygonSDK::IValueArray::IndexedCombine	(	IValueArray *	source,
		IRidArray *	idtable,
		IRealArray *	blendtable,
		rid	startId
	)

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. Works like IndexedCopy(), but uses two consecutive ids in the idtable, and a blend value from the blend table. The idtable contains (idtable_cnt*2) indices and blendtable contains idtable_cnt blend values. Note! The array must be large enough to hold the copied data.

Parameters

source	the source array to combine from Value cannot be equal to null.
idtable	is the array with the tuple indices to use for combining Value cannot be equal to null.
blendtable	the array with (alpha) blend values Value cannot be equal to null.
startId	is the first tuple that will receive the combined values

◆ IndexedCombine3()

virtual SGDEPRECATED void SimplygonSDK::IValueArray::IndexedCombine3	(	IValueArray *	source,
		IRidArray *	idtable,
		IRealArray *	blendtable,
		rid	startId
	)

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. Works like IndexedCombine(), but with three ids that are combined through two blend values in the blendtable. The idtable contains (idtable_cnt*3) indices and blendtable contains (idtable_cnt*2) blend values. Note! The array must be large enough to hold the copied data.

Parameters

source	the source array to combine from Value cannot be equal to null.
idtable	is the array with the tuple indices to use for combining Value cannot be equal to null.
blendtable	the array with (alpha) blend values Value cannot be equal to null.
startId	is the first tuple that will receive the combined values

◆ IsA()

virtual bool SimplygonSDK::IValueArray::IsA ( const char * type ) const

virtual

The IsA function returns true if the object is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the object is, or is a descendant of

Returns: true if the object is of the specified class, false if not

Reimplemented from SimplygonSDK::IArray.

Reimplemented in SimplygonSDK::IUnsignedShortArray, SimplygonSDK::IUnsignedLongArray, SimplygonSDK::IUnsignedIntArray, SimplygonSDK::IUnsignedCharArray, SimplygonSDK::IShortArray, SimplygonSDK::IRidArray, SimplygonSDK::IRealArray, SimplygonSDK::ILongArray, SimplygonSDK::IIntArray, SimplygonSDK::IFloatArray, SimplygonSDK::IDoubleArray, SimplygonSDK::ICharArray, SimplygonSDK::IBoolArray, and SimplygonSDK::IStringArray.

◆ IsClassA()

static bool SimplygonSDK::IValueArray::IsClassA ( const char * type )

inlinestatic

The IsClassA function returns true if IValueArray is a or is a descendant of the class named as the type parameter

Parameters

type	is the name of the class to check if the class is, or is a descendant of

Returns: true if the class is of the specified class, false if not

Definition at line 2104 of file SimplygonSDK.h.

◆ SafeCast()

static IValueArray* SimplygonSDK::IValueArray::SafeCast ( IObject * ptr )

inlinestatic

SafeCast makes sure the pointer is of a class that can be cast into a IValueArray pointer, and if this is possible, returns the cast pointer.

Parameters

ptr	is the pointer to be cast into a IValueArray pointer

Returns: a pointer to the IValueArray object, if the cast can be made, and a NULL pointer otherwise

Definition at line 2117 of file SimplygonSDK.h.

◆ SetInterpolateTuples()

virtual SGDEPRECATED void SimplygonSDK::IValueArray::SetInterpolateTuples ( bool value )

pure virtual

Deprecated:: Method is marked as deprecated and will be removed in future version. Set the interpolation flag. If set, the tuple values will be interpolated by calls to CopyCombineTuples, CopyCombine3Tuples, IndexedCombine and IndexedCombine3. If not set, then the methods will copy data from the tuple with the highest alpha blend value.

Parameters

value set to true if tuples should be interpolated

◆ SetRealItem()

virtual void SimplygonSDK::IValueArray::SetRealItem	(	rid	id,
		real	value
	)

pure virtual

SetRealItem() sets the item at position id. The id is the id of the item, not the tuple the item belongs to. SetRealItem() converts the value from real to the actual underlying data type.

Parameters

id	the item to set. Value cannot be less than 0. Value cannot be greater than the value returned by GetMaxItemId().
value	the real value to set the item to.

The documentation for this class was generated from the following file:

SimplygonSDK.h
